Round Welded Steel Pipes

Theoretical weight per meter (kg/m)

Outside diameter (mm)	0.9	1.0	1.1	1.2	1.3	1.4	1.5	1.8	2.0
Ø25 mm	0.557	0.615	0.673	0.730	0.787	0.843	0.898	1.060	1.165
Ø27 mm	0.601	0.664	0.727	0.789	0.851	0.912	0.971	1.149	1.262
Ø32 mm	0.712	0.787	0.863	0.937	1.011	1.085	1.156	1.371	1.510
Ø42 mm	0.934	1.033	1.134	1.233	1.332	1.430	1.527	1.814	2.003
Ø50 mm	1.111	1.232	1.351	1.470	1.588	1.706	1.823	2.169	2.397
Ø54 mm	1.200	1.331	1.459	1.588	1.716	1.844	1.971	2.347	2.595
Ø57 mm	1.267	1.404	1.541	1.677	1.812	1.947	2.082	2.480	2.743

Rectangular Welded Steel Pipes

Theoretical weight per meter (kg/m)

Size, mm	0.9	1.0	1.1	1.2	1.3	1.4	1.5	1.8	2.0
16×16	0.427	0.471	0.515	0.558	0.600	0.642	0.683	0.803	0.879
20×20	0.540	0.597	0.653	0.708	0.763	0.818	0.871	1.029	1.130
20×30	0.681	0.754	0.826	0.897	0.967	1.037	1.107	1.311	1.444
20×40	0.822	0.911	0.998	1.085	1.172	1.257	1.342	1.594	1.758
20×80	1.388	1.539	1.689	1.839	1.988	2.136	2.284	2.724	3.014
25×40	0.893	0.989	1.085	1.179	1.274	1.327	1.460	1.735	1.915
30×30	0.822	0.911	0.998	1.085	1.172	1.257	1.342	1.594	1.758
40×40	1.105	1.225	1.344	1.462	1.580	1.697	1.813	2.159	2.386
40×60	1.246	1.382	1.516	1.650	1.784	1.917	2.049	2.442	2.700
60×60	1.670	1.853	2.034	2.216	2.396	2.576	2.755	3.289	3.642

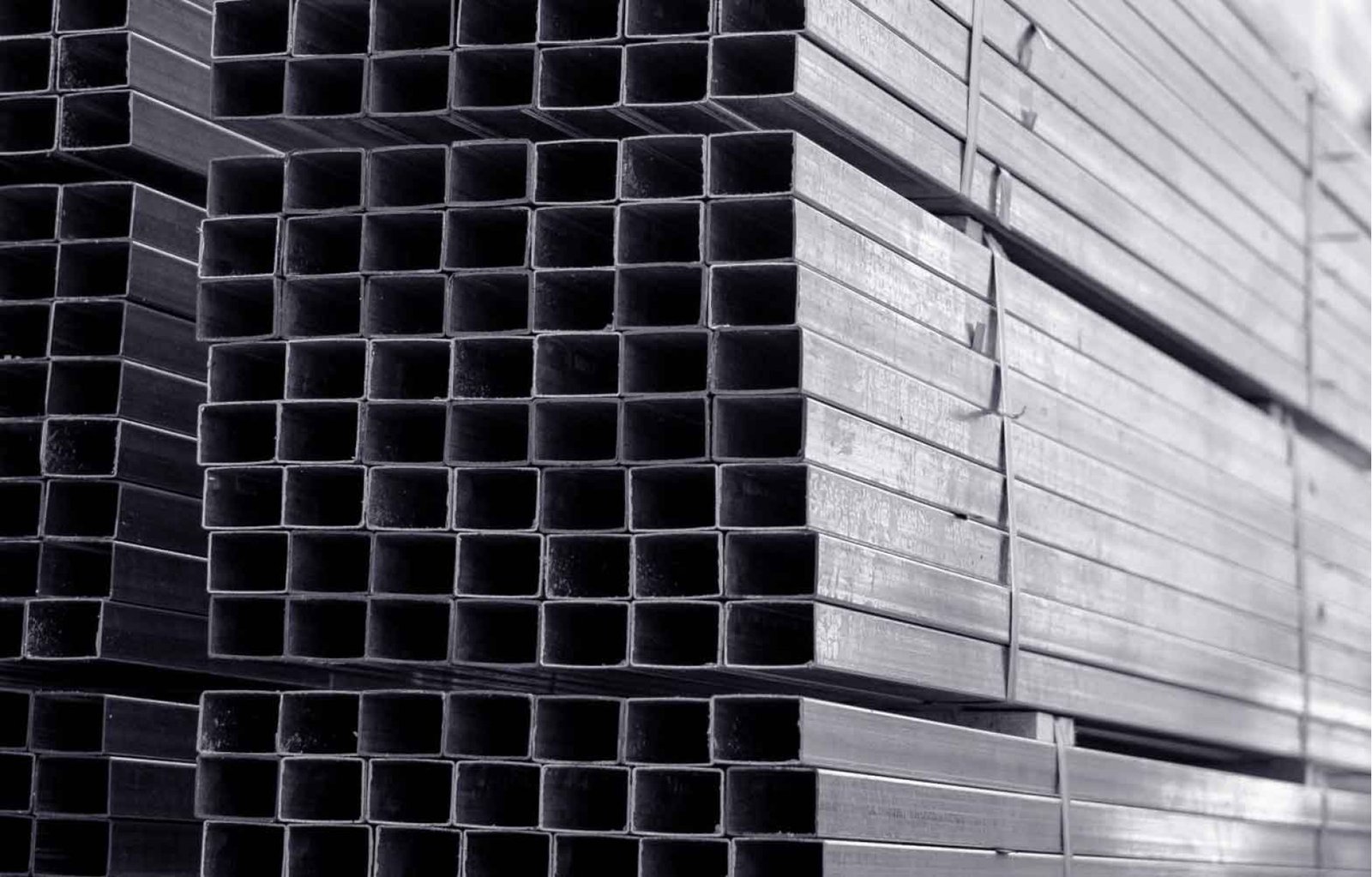

Electric welded pipes

Round and rectangular welded steel pipes for construction, engineering and industrial applications. Available in round diameters from Ø27 to Ø57 mm and rectangular sizes from 16×16 to 60×60 mm. Manufactured from DX51D and DC01 steel, with galvanized or uncoated options.

Technical Specifications:

Types:

Round and rectangular welded steel pipes

Wall thickness:

0.9–2.0 mm

Lengths:

5–12 m

Processing:

Custom cutting and marking
